Flowmeter
Thermal MEMS mass flow chip with internal compensation calibration, fast response. uesed in medical instruments and equipment, as Respirator, Oxygen generator, CPAP. HVAC.
Compact flow meter based on Electromagnetic technology, with converter and sensor in one, no mechanical loss with multiple outputs, suitable for medical equipment, industrial printer, dosing and metering equipment.
XGZF3000 Air Flow Sensor
Thermal MEMS mass flow chip
High precision ASIC, Low flow measurement
Internal compensation and calibration, Fast response
Linear analog output, High accuracy, High resolution
Range: 200/400/1000/2000/3000SCCM
Power Supply: 8~24VDC (Default 12V)
Output: Analog (1-5V) or I2C
Operating Temp.: -30°C~120°C
Materiala: PA66+GF30
FS4001 Air Flow Sensor
Range: 0 ~ 30, 100, 200, 500, 1000 sccm
Accuracy ±(1.5+0.5FS) %
Repeatability 1.5 ±0.15 %
Response time 4, 8, 16, 33, 65, 131 ms
Temperature range -10~+55 °C
Temperature coefficient ±0.12 %/°C
Pressure range -0.08~0.5 MPa
Power supply 8~24 Vdc
Working current 50 mA
Output Linear, analog 0.5~4.5 VDC/I2C
Calibration Air @ 20°C, 101.325 kPa
FS5001 Air Flow Sensor
Range: 0 ~ 200, 500, 1000, 2000, 4000, 6000, 10000, 15000 sccm
Accuracy ±(2.0+0.5FS) %
Repeatability 0.5 %
Response time* 10 msec
Temperature range -10~+55 °C
Temperature coefficient ±0.12 %/°C
Pressure range -0.08~0.5 MPa
Power supply 8~24 VDC
Working current 50 mA
Output Linear, analog 0.5~4.5 VDC/I2C
Calibration Air @ 20°C, 101.325 kPa
XGZF3000 Air Flow Sensor
Thermal MEMS mass flow chip
High precision ASIC, Wide measuring range
Internal compensation and calibration, Fast response
Linear analog output, High accuracy, High resolution
Range: 20/50/100/150/200/300SLM
Power Supply: 8~24VDC (Default 12V)
Output: Analog (1~5V) or IIC
Operating Temp.: -30°C~120°C
Materiala: Aluminum alloy
(stainless steel is available)
KG Ultrasonic Clamp-on FlowSensor
Non-contact preventing any contamination
Volume totalizing and dosing output switch
Stable measurement different pressure
Configuration via software
No external transmitter required
Water,blood,drinks,oil,chemicals,paint,etc.
Accuracy 1.5% plus zerooffset
TubingMaterial:PVC,Silicone,PFA,PTFE,PE,PUR,etc.
HousingMaterial: Aluminiumalloy
Power Supply: 12~30VDC Current Less than20mA(noexternalload)
Connector: 8pin push-pullplug FluidTemperature: 0°C~60°C StorageTemperature: -20°C~70°C
Amag-Mini Electromagnetic Flowmeter
Size: DN6, DN12, DN25, DN50
Velocity range: 0.01m/s~10 m/s
Accuracy: ±0.5% of RS (Velocity>0.6m/s) or ±3mm/s(Velocity≤0.6m/s)
Temperature: PT1000, 0.1℃ resolution Media Conductivity: 20 ms/cm measurement
Max Working Pressure: 1.0MPa
Electrodes: SS316L or HC
Enclosure: Aluminum, IP65 for Blind version Connection: G1/2 or NPT 1/2
Power supply: 24VDC, ≤100mA
LCD display: flow rate and total flow
Output: Analog 4~20mA or Pulse 0~5K Hz
Relay Output: optional, 1 Relay 2A/30VDC RS485 MODBUS: Optional for Display version, Standard for Blind versio

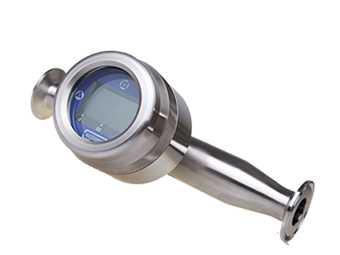

Sanitary Differential Pressure Flow Meter
Multi-parameter outputs
Multi-standard process connection options
Non-contact digital operating panel
Reference Accuracy:
Flow : ±0.3% ±0.5 ±1%
Pressure: ±0.5%
Temperature: ±0.3%
Stability: Reference Accuracy×Span/3years
Output: 4~20mA, RS485 or HART
Electrical Connection: M16×1.5 socket
Accuracy:
S Basic Error ±0.3%
E Basic Error ±0.5%
F Basic Error ±1%
Range:
0~0.1~1 t/h (Min)...
0~4~40 t/h (Max)

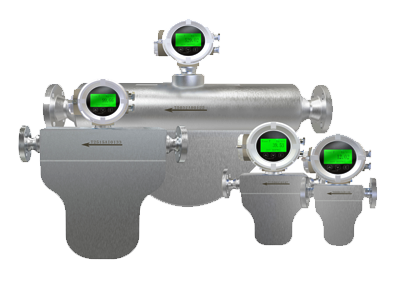

Coriolis Mass Flow Meter
DN04, DN08, DN15, DN25, DN50, DN80
Integrated design, small volume, easy installation
Protection class IP67
Model: RF3200-08T
Caliber: 1/4'' DN08
Medium temperature: -40℃~+85℃
Working pressure: ≤4MPa
Upper limit of flow: 25, 80
...
Model: RF3200-50T
Caliber: 2'' DN50
Medium temperature: -40℃~+85℃
Working pressure: ≤4MPa
Upper limit of flow: 850, 1874

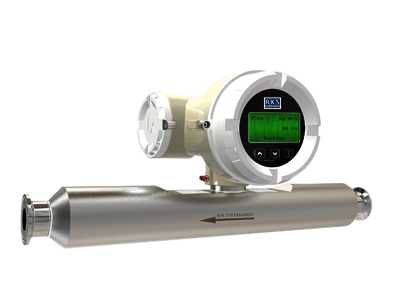

Sanitary Coriolis Flow Meter
Accuracy Class: Class 0.15, Class 0.2, Class 0.5 (default), Class 1.0
Density: ±0.001g/cm3
Humidity: ±1℃
Ambient temperature: -40℃~+55℃
Humidity: ≤95%
Power Supply: 12VAC~30VAC/15VDC~40VDC
Electrical Connection: Plug M20×1.5
Output:
Modbus, RS485, Pulse, 4~20mA/HART
Measuring Medium:
Gas, liquid, uniform multi-phase flow
Housing Material:
304 stainless steel, ZL401 (transmitter)
Tube Material:
316L (default), Hastelloy, etc.
Process Connection: Thread, flange, clamp
