Non-Contact Clamp-On Flow Meter
Ultrasonic flow meter for the biological industry
Coating & Filling
Since the clamp method measures on the outside of the piping, it is best suited for checking the amount of lubricant and adhesive applied, where the flow sensor cannot be installed for fear of solidification, and for checking the filling amount of food and pharmaceuticals, where contact with liquids is to be avoided.
Release Agent Spraying
Spitting & Spraying
Lubrication
When using conventional flow sensors, there is a risk of changes in production conditions due to pressure loss caused by the presence of structural components in the flow path. Therefore, it is sometimes difficult to retrofit to existing equipment. With the clamp-on type, there is no such risk and no maintenance is required.
Various measurements can be performed without contacting liquids.
No pressure loss and no change in production conditions.
Easy to install, can be quickly mounted on multiple manifolds.
It can be quickly installed on the device you wish to measure.
Clamp-on flow sensors do not require piping cuts, and no piping work is required for installation. Even complex manifolds can be easily installed with a screwdriver. The flow rate of a small amount of cooling water in the manifold and the amount of release agent applied can be visualized.
Clamp-type flow sensors can also be quickly installed when you want to manage flow rates but cannot stop production and have to postpone installation of the corresponding equipment, or when you want to install equipment for fluid liquids, such as oil, that are difficult to pipeline.
GF-KG series ultrasonic clamp-on flow sensors are compact in size, and can measure flow and output results without external circuitry. The sensors can be directly clamped on flexible plastic tubing to accurately measure the liquid flow rate and detect air bubbles. The sensors are not in direct contact with the liquid in the tubing and will not contaminate the liquid. They are especially suitable for applications where strict hygiene is required, such as medical devices, bioprocessing, new energy,semiconductors, industrial automation, scientific
research, and other fields.
GF-KG Clamp-on Ultrasonic Flow Sensor
GF-KG series ultrasonic clamp-on flow sensors are compact in size, and can measure flow and output results without external circuitry. The sensors can be directly clamped on flexible plastic tubing to accurately measure the liquid flow rate and detect air bubbles. The sensors are not in direct contact with the liquid in the tubing and will not contaminate the liquid. They are especially suitable for applications where strict hygiene is required, such as medical devices, bioprocessing, new energy,semiconductors, industrial automation, scientific
research, and other fields.

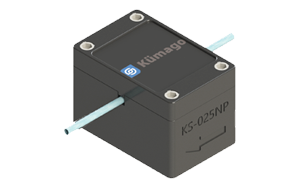

GF-KS Clamp-on Ultrasonic Flow Sensor
GF-KG series ultrasonic clamp-on flow sensors are compact in size, and can measure flow and output results without external circuitry. The sensors can be directly clamped on flexible plastic tubing to accurately measure the liquid flow rate and detect air bubbles. The sensors are not in direct contact with the liquid in the tubing and will not contaminate the liquid. They are especially suitable for applications where strict hygiene is required, such as medical devices, bioprocessing, new energy,semiconductors, industrial automation, scientific
research, and other fields.
GF-X5 Clamp-on Ultrasonic Flow Sensor
- Flow Range: 0~200/300/500/600/700/800/900/1200/2000 ml/min
- TubeSize: 4, 5, 7, 8, 9, 11, 13, 14, 16, 19, 25mm
- Liquid: Water,blood,drinks,oil,chemicals,paint,etc.
- Accuracy: 1.5%~3%, plus zero offset
- Calibration Default: 22±3°C, water
- Tubing Material: PVC,Silicone, PFA, PTFE, PE, PUR, etc.
- Housing Material: Aluminiumalloy
- Input Voltage: 12~30VDC
- Current: <20mA (no external load)
- Connector: 8pin push-pull plug
Fluid Temperature: 0°C~ 60°C - Storage Temperature: -20°C~70°C
- Input & Output:
1 RS485 Output
2 Analog Output: 4~20mA, 0~20mA, 0~24mA, 0~5V, 0~10V
3 Frequency Output: 0~20kHz
4 Digital Output: NPN, PNP
