Guarding life and health
Sensing is everwhere
Pressure Sensor (Plastic & Metal)
Application for medical equipment, household appliance, apparatus construction, measuring technique, packaging machines, heating & ventilation technology, loT, etc,.
Economical, high accuracy, low drift, easy installation. Support customization (range/output etc,.)
XGZP6881 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: ~100kPa...0~0.5kPa...200kPa
Type: Gauge pressure
Media: Air and non-corrosive gas
Power Supply: 2.5~5.5V
Output: Analog Amplified or IIC digital
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6891 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: -100kPa...0~1kPa...200kPa
Type: Differential pressure
Media: Air and non-corrosive gas
Power Supply: 2.5-5.5V
Output: Analog Amplified or IIC digital
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6897 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: -100kPa...0~0.5kPa...200kPa
Type: Differential pressure
Media: Air and non-corrosive gas
Power Supply: 2.5~5.5V
Output: Analog Amplified or IIC digital
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6899 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: -100kPa...0~0.5kPa...700kPa
Type: Differential pressure
Media: Air and non-corrosive gas
Power Supply: 2.5-5.5V
Output: Analog Amplified or IIC digital
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6859 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: -100kPa...0~5kPa...200kPa
Type: Gauge pressure
Media: Air and non-corrosive gas
Power Supply: 2.5-5.5V
Output: Analog Amplified output or IIC digital output
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6887 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: -100kPa...0~5kPa...200kPa
Type: Differential pressure
Media: Air and non-corrosive gas
Power Supply: 2.5~5.5V
Output: Analog Amplified or IC digital
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6885 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: 0~10/50/100/250/500/700kPa
Type: Gauge pressure
(Absolute type refer to: XGZP6886)
Media: Air and non-corrosive gas
Power Supply: 4.75~5.25V
Output: Analog Amplified output
Accuracy: ±1 (% Span)
Working Temp.: ~30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6895 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: 0~10/50/100/250/500/700kPa
Type: Differential or gauge pressure
Media: Air and non-corrosive gas
Power Supply: 4.75~5.25V
Output: Analog Amplified output
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6857 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: -100kPa...0~1kPa...1000kPa
Type: Gauge pressure
Media: Air and non-corrosive gas
Power Supply: 2.5~5.5V
Output: Analog Amplified or IIC digital
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120C
Compensation Temp.: 0°C~60°C
XGZP160 Pressure Sensor(mV Calibrated)
MEMS technology, Solid-state reliability
Pressure range: 10/40/100/200/350kPa
Pressure type: Gauge pressure type
Measurement medium: Air and non-corrosive gas
Power supply: ≤15Vdc or ≤3.0mAdc
Output: mV signal output
Output Impedance: 4kΩ~6kΩ
Working temp.: -30°C~120°C
Overload pressure: 1.5/2/3X FS
Packaging: Plastic tube or tape & reel
XGZP167 Pressure Sensor(mV Calibrated)
MEMS technology, Solid-state reliability
Pressure range: 10/20/40/100/200kPa
Pressure type: Gauge pressure type
Measurement medium: Air and non-corrosive gas
Power supply: ≤15Vdc or ≤3.0mAdc
Output: mV signal output
Output Impedance : 4kΩ ~6kΩ
Working temp.: -30°C~120°C
Overload pressure: 1.5/2/3X FS
Packaging: Plastic tube or tape & reel
XGZP191 Pressure Sensor(mV Calibrated)
MEMS technology, Solid-state reliability
Range: 10/50/100/200kPa
Type: Gauge pressure type
Medium: Air and non-corrosive gas
Power Supply: 10VDC (Typical)
Offset: -1~1mV
FS Output: 20±1mV (10KPa)/40±1.5mV (50/100/200KPa)
Offset temp. drift: ±1mV
FS temp. drift: ±2 (%FS)
Working temp.: -30°C~120°C
XGZP192 Pressure Sensor(mV Calibrated)
MEMS technology, Solid-state reliability
Range: 10/50/100/200kPa
Type: Differential pressure type
Medium: Air and non-corrosive gas
Power Supply: 10VDC (Typical)
Offset: -1~1mV
FS Output: 20±1mV (10KPa)/40±1.5mV (50/100/200KPa)
Offset temp. drift: ±1mV
FS temp. drift: ±2 (%FS)
Working temp.: -30°C~120°C
XGZP194 Pressure Sensor(mV Calibrated)
MEMS technology, Solid-state reliability
Range: 10/50/100/200kPa
Type: Differential pressure type
Medium: Air and non-corrosive gas
Power Supply: 10VDC (Typical)
Offset: -1~1mV
FS Output: 20±1mV (10KPa)/40±1.5mV (50/100/200KPa)
Offset temp. drift: ±1mV
FS temp. drift: ±2 (%FS)
Working temp.: -30~120°C
XGZP195 Pressure Sensor(mV Calibrated)
MEMS technology, Solid-state reliability
Range: 10/50/100/200kPa
Type: Gauge pressure type
Medium: Air and non-corrosive gas
Power Supply: 10VDC (Typical)
Offset: -1~1mV
FS Output: 20±1mV (10KPa)/40±1.5mV (50/100/200KPa)
Offset temp. drift: ±1mV
FS temp. drift: ±2 (%FS)
Working temp.: -30°C~120°C
XGZP6847 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: -100kPa...0~1kPa...1000kPa
Type: Gauge pressure
Media: Air and non-corrosive gas
Power Supply: 2.5~5.5V
Output: Analog Amplified or IIC digital
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120C
Compensation Temp: 0°C~60°C
XGZP6816 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: 30~110kPa
Type: Absolute pressure
Media: Air and non-corrosive gas
Power Supply: 1.8~3.6V
Output: IIC digital output
Accuracy: ±1hPa
Working Temp.: -30°C~120°C
Compensation Temp.: -10°C~60C
XGZP6826 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: 0~100kPa...2500kPa
Type: Absolute pressure
Media: Non-corrosive and non-conducive gas or liquid
Power Supply: 3.3-5.5V
(Low-consumption version: XGZP6830D )
Output: Analog or IIC digital output
Accuracy: ±1 (% Span)
Working Temp.: -30°C~120°C
Compensation Temp.: 0°C~60°C
XGZP6818 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: 0~100...2500kPa
Type: Absolute pressure
Media: Air and non-corrosive gas
Power Supply: 3.3~5.5V
(Low-consumption version: XGZP6812D)
Output: Analog or IIC digital output
Accuracy: ±1% (Span)
Working Temp.: -30°C~120°C
Compensation Temp.: -10°C~60°C
AS1813C Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: ±125Pa~±1MPa
Type: Gauge, Differential, Absolute
Materials: Ceramics, Silicon
Media: Moisture-proof gas
Power Supply: 3.3VDC or 5.5VDC
Output: I2C or SPI
Accuracy: ±1% (Span)
Working Temp.: -40°C~125°C
Compensation Temp.: -10°C~60°C
ASC77 Pressure Sensor(Calibrated)
Piezoresistive MEMS Technology
Range: 1bar, 2bar, 5bar, 7bar
Type: Absolute pressure
Materials: Silicon, Ceramic, Stainless Steel
Media: Waterproof corrosion resistant
Power Supply: 1.8~5.5VDC
Output: I2C or SPI
Accuracy: ±1mbar @25°C (1bar range)
Working Temp.: -40°C~85°C
Packaging: SMD
Size: 6.4x6.2x2.9mm
AS55H Pressure Sensor
Piezoresistive MEMS Technology
Range: 1bar, 2bar, 5bar, 7bar
Type: Absolute pressure
Materials: Silicon, FR-4, Stainless Steel
Media: Waterproof, corrosion resistant
Power Supply: 1.8~5.5VDC
Output: I2C or SPI
Accuracy: ±1mbar @25°C (1bar range)
Working Temp.: -40°C~85°C
Packaging: SMD
Size: 4.5x4.5x3.7mm

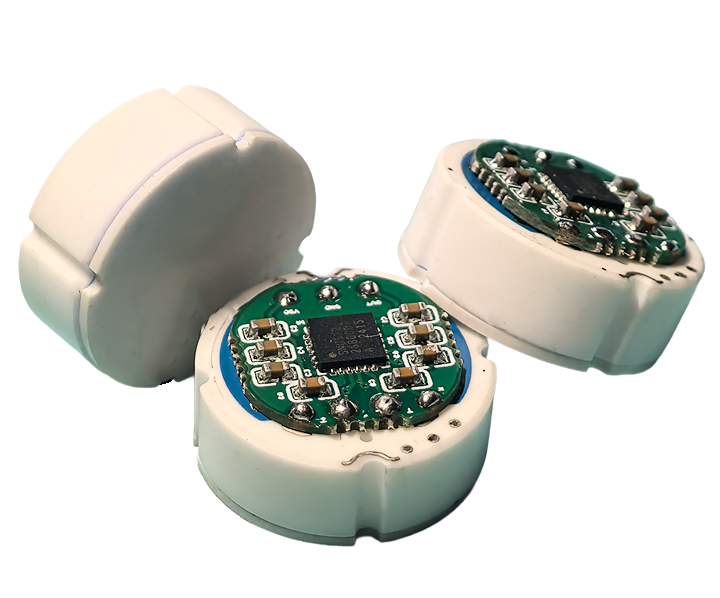

GP310 Pressure Sensor
Ceramic Thin-film Technology
Range: 0～5 bar ... 200 bar
Flush diaphragm
Piezoresistive ceramic pressure transducer
Pressure range 0～5 bar…200 bar
Radiometric or I2C output
Excellent resistance to corrosion and abrasion
Fully integrated signal conditioning
Thermally compensated

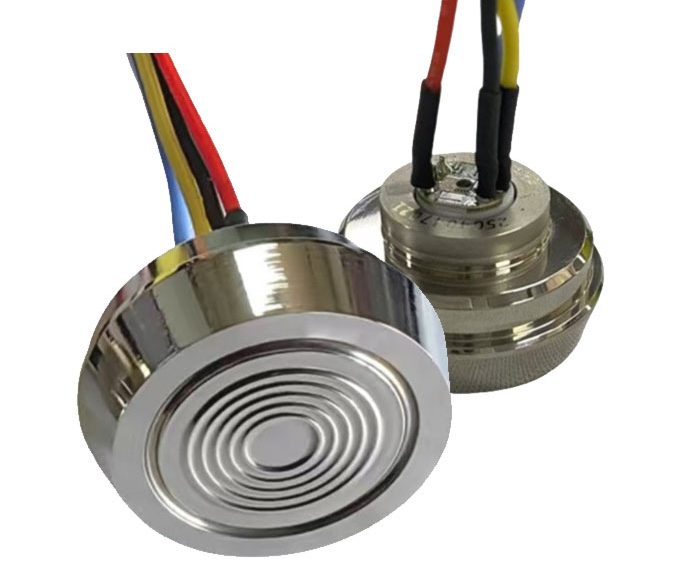

GP-2301 Flat Pressure Sensor
Power supply: ≤2.0mADC
Electric connection : 6-pin kovar or wires Range: 0~0.35 bar …100 bar
Gauge, Absolute optional
Input impedance: 3kΩ～8kΩ
Output impedance: 3.5kΩ～6kΩ
Response (10%～90%) <1ms
Insulation resistor: 100MΩ, 100VDC Overpressure 1.5 xFS
Metal material: 1.4435 (NTS20) Surface Mirror polishing (contact medium parts)
Filled oil: AK100 (NTS2)
GP-2301 Flat Pressure Sensor
Power supply: ≤2.0mADC
Electric connection : 6-pin kovar or wires Range: 0~0.35 bar …100 bar
Gauge, Absolute optional
Input impedance: 3kΩ～8kΩ
Output impedance: 3.5kΩ～6kΩ
Response (10%～90%) <1ms
Insulation resistor: 100MΩ, 100VDC Overpressure 1.5 xFS
Metal material: 1.4435 (NTS20) Surface Mirror polishing (contact medium parts)
Filled oil: AK100 (NTS2)

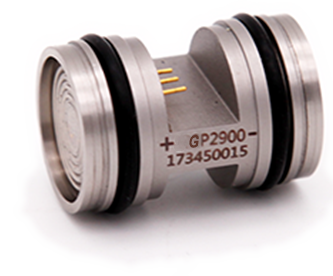

GP2900 Differential Pressure Sensor
Range: 0kPa～20kPa…3.5MPa
Material: 316L housing
Electric connection: 6-pin kavor or wires
Seal ring: NBR
Power supply: ≤2.0mA DC
Impedance input: 3kΩ～8kΩ
Impedance output: 3.5kΩ～6kΩ
Response: <1ms (10%～90%)
Insulation resistance: 100MΩ, 100V DC
Maximum static pressure: 20MPa
Media applicability: Fluid no corrosion on stainless steel and NBR
QTB351 Pressure Sensor
Metal Sputtering Thin-film Technology
Range: 0.5MPa～250MPa
Precision: ±0.1%FS, ±0.2%FS, ±0.5%FS
Linearity: ±0.1%FS, ±0.15%FS
Hysteresis: ±0.1%FS
Repeatability: 0.1%FS
Sensitivity: 1.3±0.1mV/V, 1.4±0.25mV/V
Long-term stability: ±0.2%FS/year
Operating temperature: -40°C～105°C
Zero temperature drift: ±0.01 %FS/°C
Full-scale temperature drift: ±0.03 %FS/°C
Material: 17-4PH Stainless Steel
